SINUMERIK 808D and SINUMERIK 808D ADVANCED - the entry-level CNCs for basic standard machines With SINUMERIK 808D and SINUMERIK 808D ADVANCED, the latest CNC technology is now available for basic standard milling and turning machines. It goes without saying that Siemens also ensures that entry level CNCs have the maximum degree of robustness. This means that coated electronic boards and assembly under strict German quality guidelines are an absolute must. With over 50 years of experience in CNC technology, SINUMERIK CNCs guarantee maximum machining performance. In fact, SINUMERIK 808D and SINUMERIK 808D ADVANCED continue this long tradition by offering the latest CNC system architecture, as well as proven CNC features. Since SINUMERIK 808D and SINUMERIK 808D ADVANCED are members of the SINUMERIK family, machine tool operators will enjoy the benefits of fullycompatible CNC operation and programming.

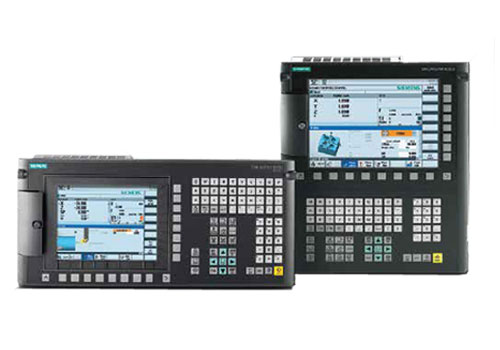

SINUMERIK 828D and SINUMERIK 828D BASIC set standards in the compact CNC class when it comes to ruggedness and operator friendliness.
SINUMERIK 808D and SINUMERIK 808D ADVANCED - the entry-level CNCs for basic standard machines With SINUMERIK 808D and SINUMERIK 808D ADVANCED, the latest CNC technology is now available for basic standard milling and turning machines. It goes without saying that Siemens also ensures that entry level CNCs have the maximum degree of robustness. This means that coated electronic boards and assembly under strict German quality guidelines are an absolute must. With over 50 years of experience in CNC technology, SINUMERIK CNCs guarantee maximum machining performance. In fact, SINUMERIK 808D and SINUMERIK 808D ADVANCED continue this long tradition by offering the latest CNC system architecture, as well as proven CNC features. Since SINUMERIK 808D and SINUMERIK 808D ADVANCED are members of the SINUMERIK family, machine tool operators will enjoy the benefits of fullycompatible CNC operation and programming.
Rugged and maintenance-free
With an operator panel front manufactured out of die-cast magnesium, a panel-based CNC
design with well conceived interfaces along with the high IP65 degree of protection make
the SINUMERIK 828 a reliable CNC, even in harsh environments. The SINUMERIK 828D and
SINUMERIK 828D BASIC are completely maintenance-free CNC controls as they have no fan
and no hard disk - and are equipped with NV-RAM memory technology without buffer
battery. Two different panel layouts are available - horizontal and vertical - a feature that
further enhances their versatility.
User-friendly
Equipped with a full QWERTY CNC keyboard with shorcut keys and a high resolution
8.4" / 10.4" TFT color display, SINUMERIK 828 controls can be simply operated. CNC data can
be transferred quickly and easily using USB, Compact Flash (CF) card and RJ45 interfaces at
the operator panel front. The fully graphical user interface and the structure of the CNC
direct keys facilitate fast operation with just a few keystrokes. Turning and milling machines
are operated in an identical fashion.

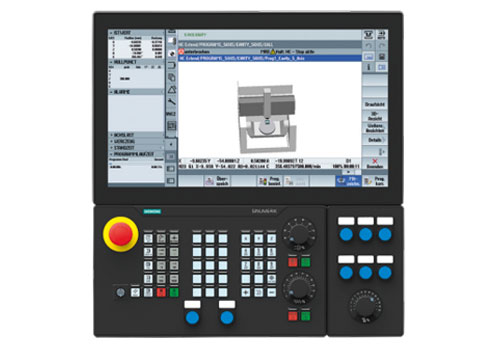

SINUMERIK 840D sl is considered to be the standard in the premium class CNCs, which is certainly justified. Maximum CNC performance, along with a high degree of flexibility and openness - which has been unachievable up until now - represent the basis for almost every machine concept. A high-performance hardware architecture and intelligent control algorithms as well as premium class drive and motor technology class ensure the highest dynamic performance and machining precision. CNC SINUMERIK 840D sl is complemented by a comprehensive range of solutions for integration into IT environments
